Description |

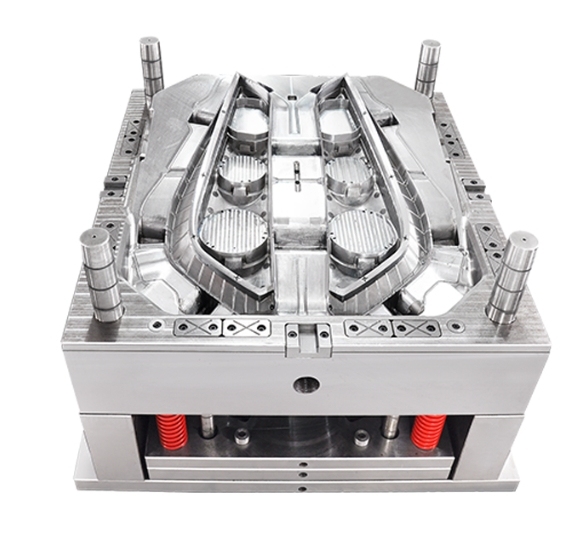

Auto Light Mold |
|
Plastic resin |
ASA+PMMA,S359E,ABS,XR401,PA6+45%GF,AS91J,PP-GF30,TPV-65,TPS YH65,PMMA-ASA,M1800,ASA LI941,TPE,PP-PNO-S05, etc. |
|
Mould cavity qty |
Customized |
|
Mould dimension (mm) |
Customized |
|
Mould weight (T) |
17.6T |
|
Mould cavity steel |
ASSAB STAVAX, 2344ESR, 2378, H-13, PAT868S, DHA1, etc. |
|
Suitable Machine |
650T |
|
Mould Core steel |
Euro P20 |
|
Manufacture time (day) |
30-60 days |
|
Mould life (ten thousand) |
≥50 |
|
Cycle time |
50-60s |
|
Cooling line connector type |
DEM NS350 SERIES quick coupling, connected to main water manifold by FST100 MS joint connector, excellent cooling system design. |
| 3D Parts | Cavity side | Core side |

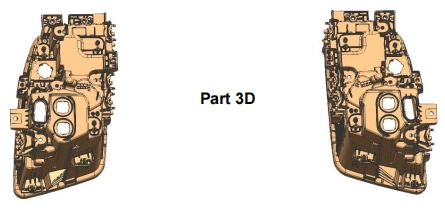

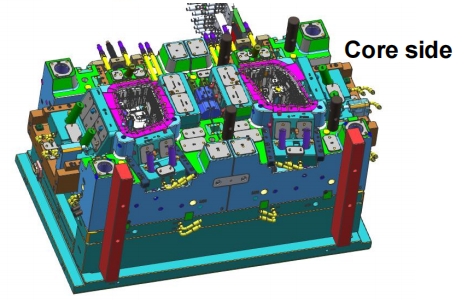

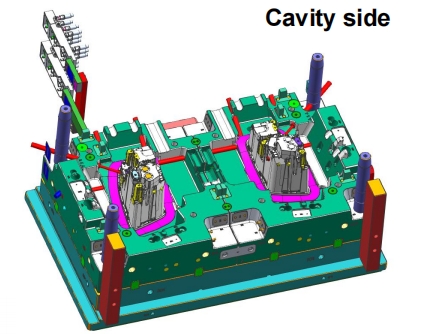

 1k head light housing |
 |
 |

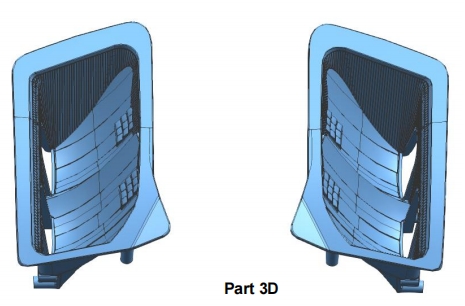

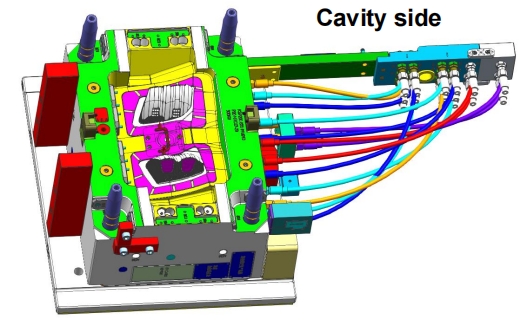

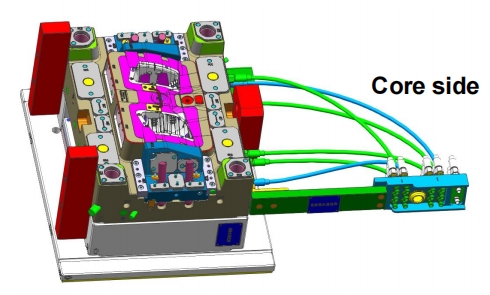

 1k reflector |
 |
 |

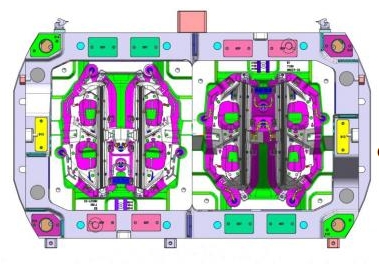

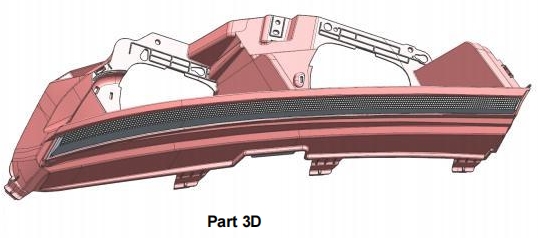

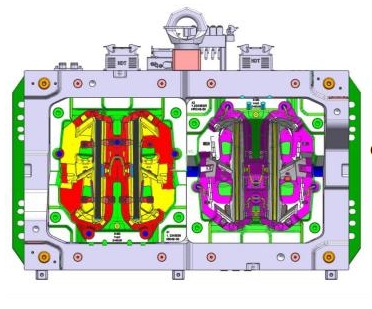

 2k head light bezel |
 |
 |

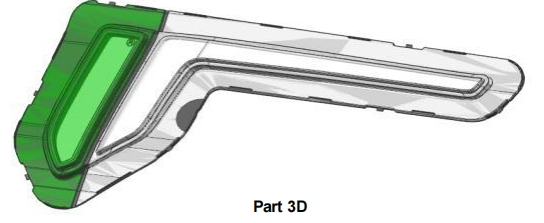

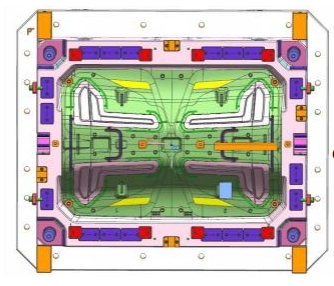

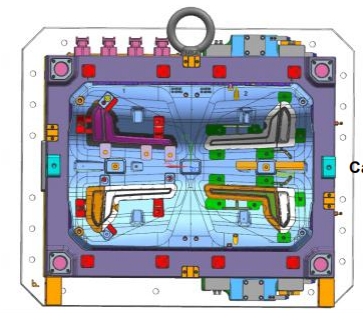

 3k fog light lens |
 |
 |
